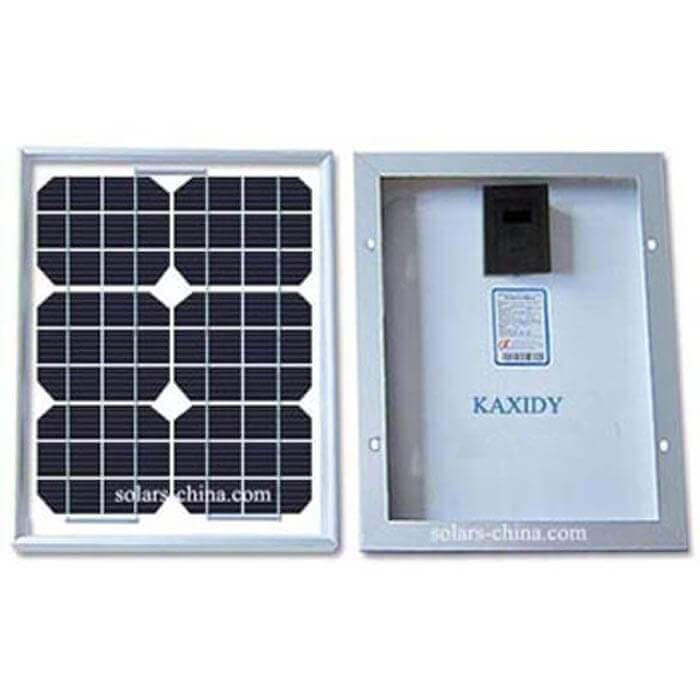

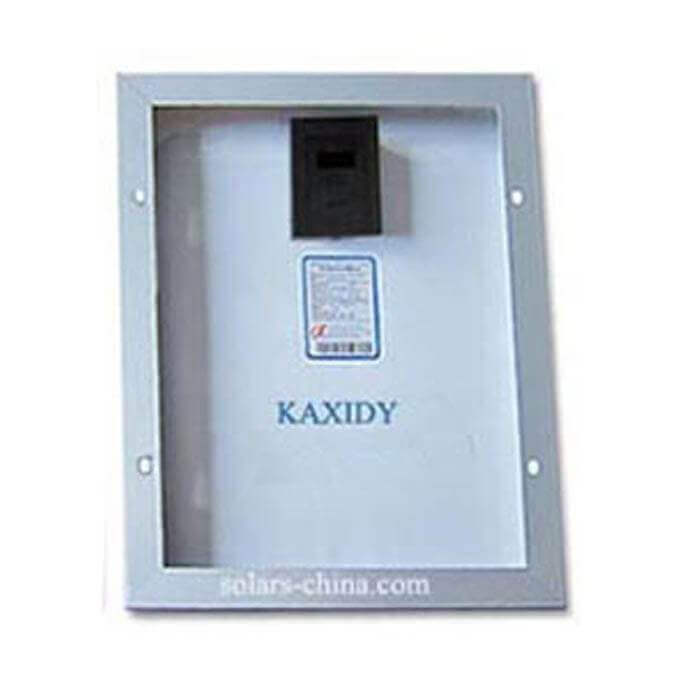

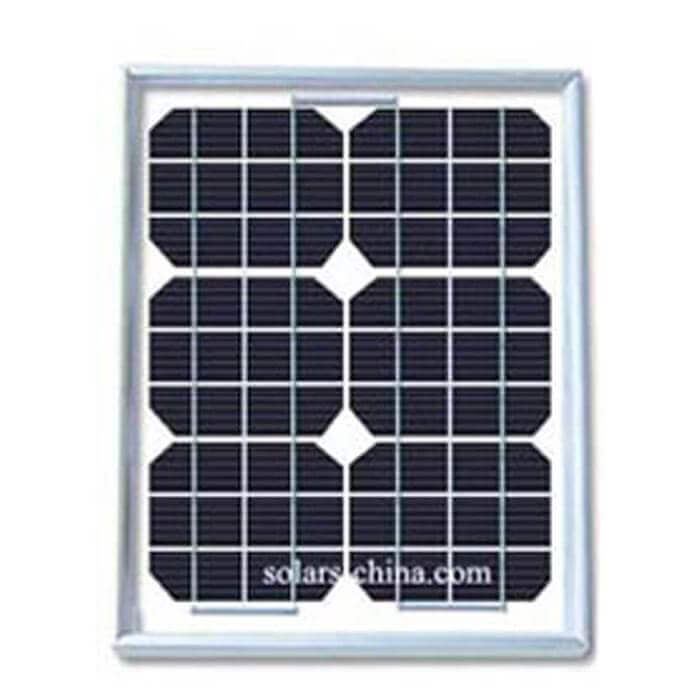

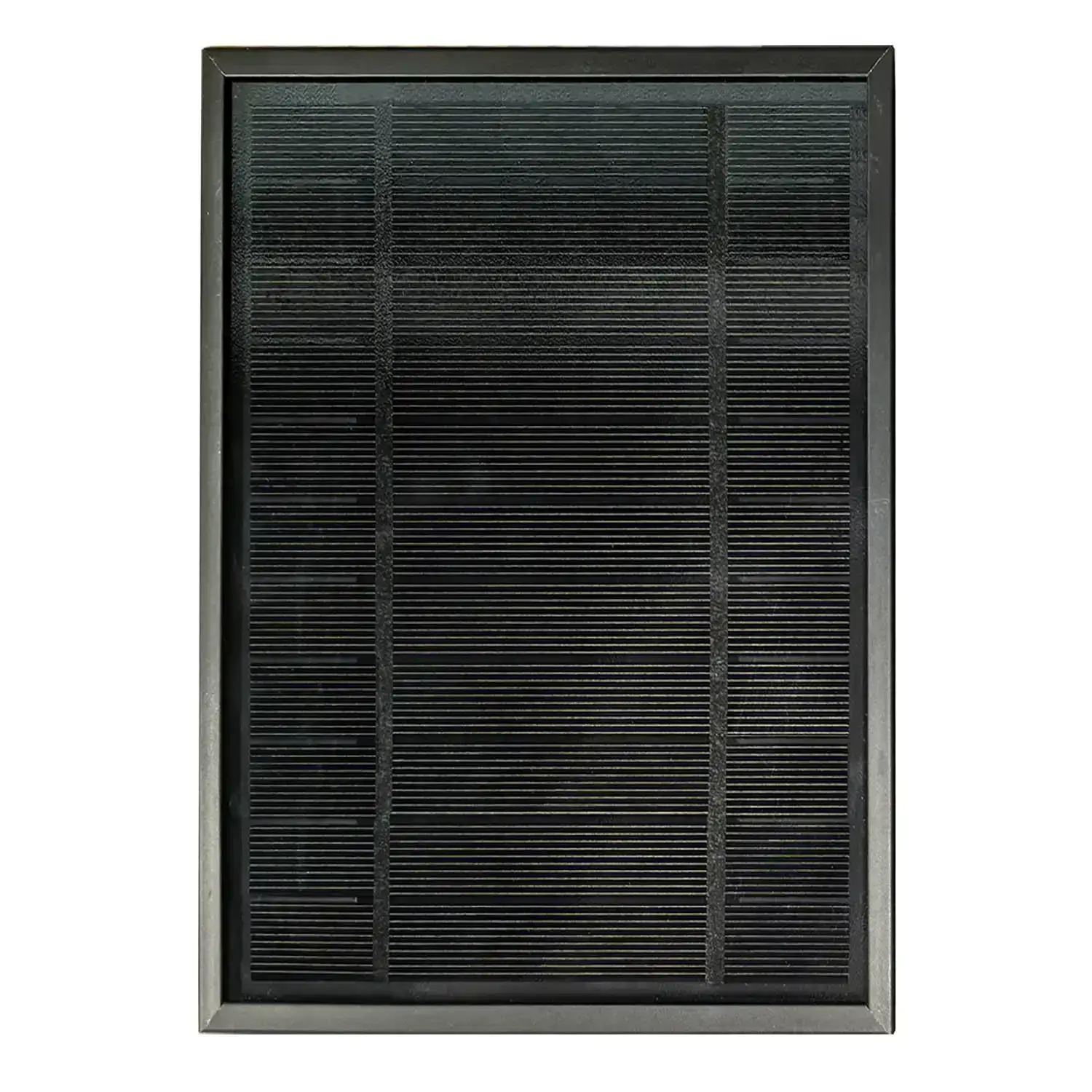

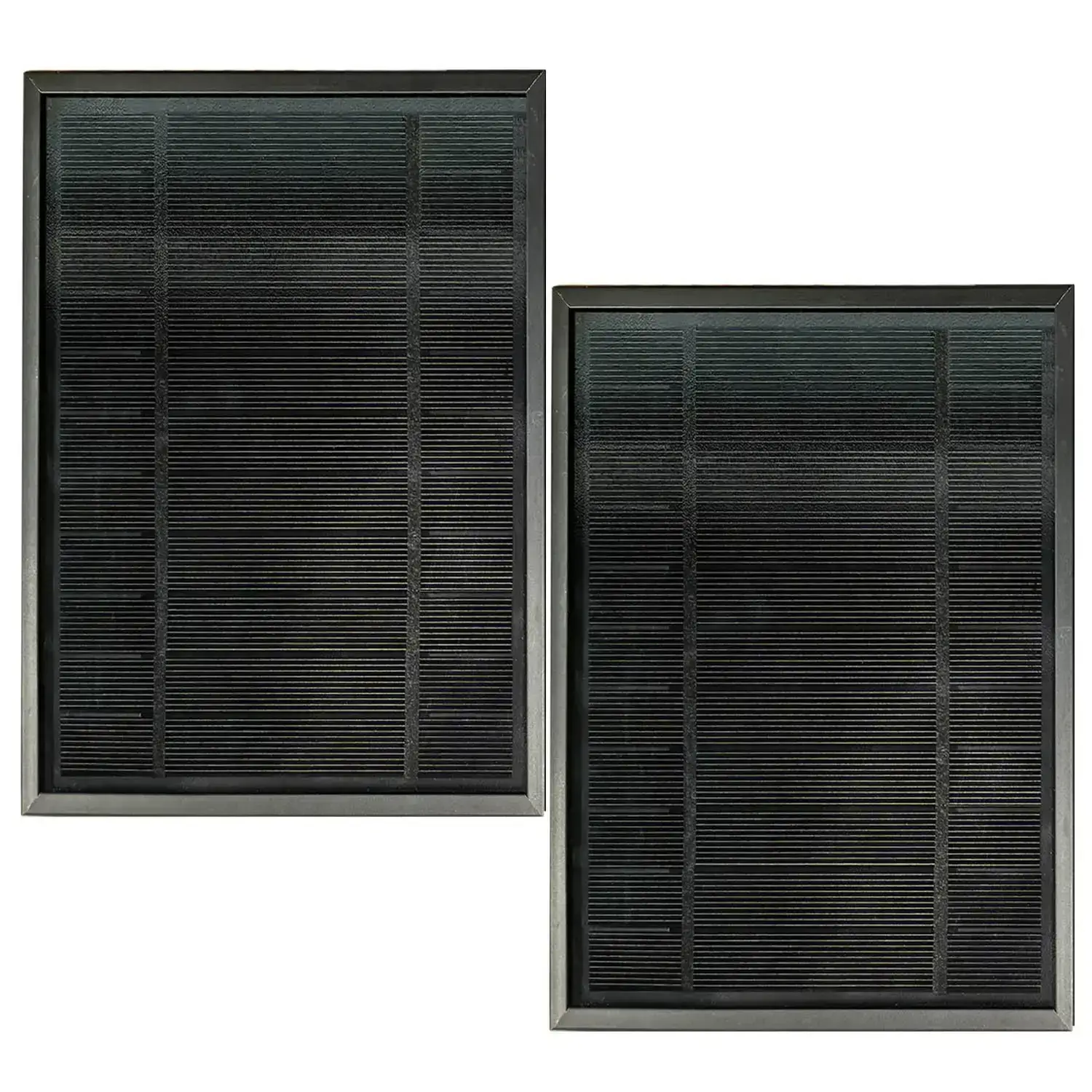

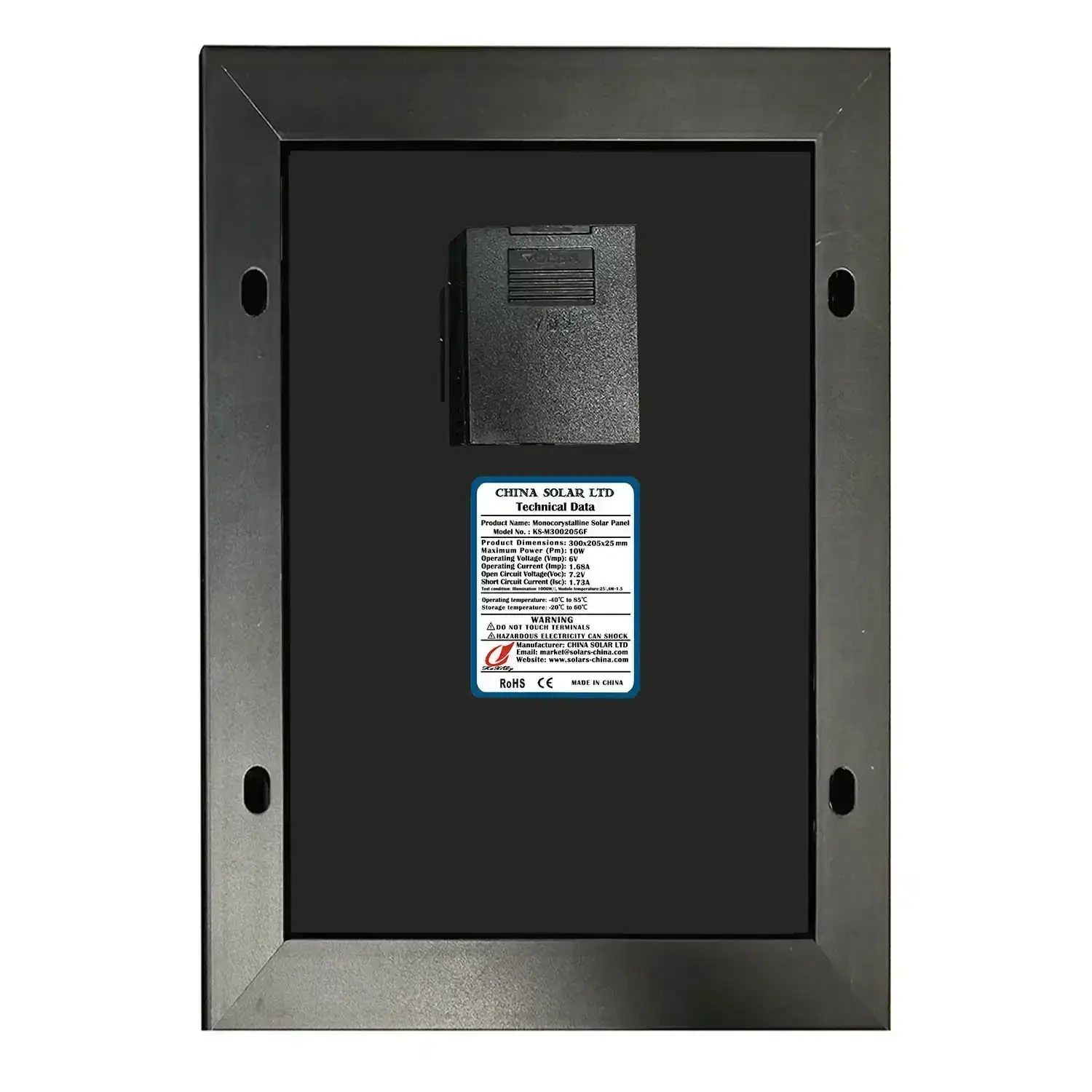

10W Monocrystalline solar module |
|
| |
Features:
-- High efficiency monocrystalline solar cells
-- IEC61215 certification
-- Custom manufacturing available upon request
Figure of Solar Panel Structure
 Datasheet for PDF VIEW
|
- Item No: KS-M10W
- Maximum Power (Pm) : 10W
- Operating Voltage (Vmp):18V
- Operating Current (Imp) :556mA
- Open Circuit Voltage (Voc) :21.6V
- Short Circuit Current (Isc): 610mA
- Dimension:350x280x25mm
- Glass thickness:3.2mm,Low iron tempered glass
- Encapsulation Methods: PV Tempered Glass Lamination
- Frame: Silver anodized aluminum and junction box.
- Charger for 12V battery
- STANDARD TEST CONDITIONS(STC):
AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
- Warranty: nominal power keep more than 90% in 10 years
|
|
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
10W36V Monocrystalline Solar Module |
|
| |
Features:
-- High efficiency monocrystalline solar cells
-- IEC61215 certification
-- Custom manufacturing available upon request
Figure of Solar Panel Structure
Datasheet for PDF VIEW |
- Item No: KS-M10W36V
- Maximum Power (Pm) : 10W
- Operating Voltage (Vmp):36V
- Operating Current (Imp) :277mA
- Open Circuit Voltage (Voc) :43.2V
- Short Circuit Current (Isc): 305mA
- Dimension:350x280x25mm
- Glass thickness:3.2mm,Low iron tempered glass
- Encapsulation Methods: PV Tempered Glass Lamination
- Frame: Silver anodized aluminum and junction box.
- Charger for 24V battery
- STANDARD TEST CONDITIONS(STC):
AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
- Warranty: nominal power keep more than 90% in 10 years
|
|
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Configuration Relationships between solar panel and Batteries |
| Batteries |
Solar Panel |
Related Products |
1.2V |
1.8V~2V |
|
1.5V |
2.2V-2.5V |
|
2.4V |
3.6V~4V |
|
3.2V |
4.5V-5V |
|
3.7V |
5.5V-6V |
|
5V |
7V-8V |
|
6V |
9V |
|
9V |
12V-13.5V |
|
12V |
17.2~18V |
|
18V |
24V |
|
24V |
36V |
|
36V |
48V |
