Features:
-- High efficiency monocrystalline solar cells
-- CE Certification
-- Custom manufacturing available upon request
Figure of Epoxy Resin Solar Panel Structure
|

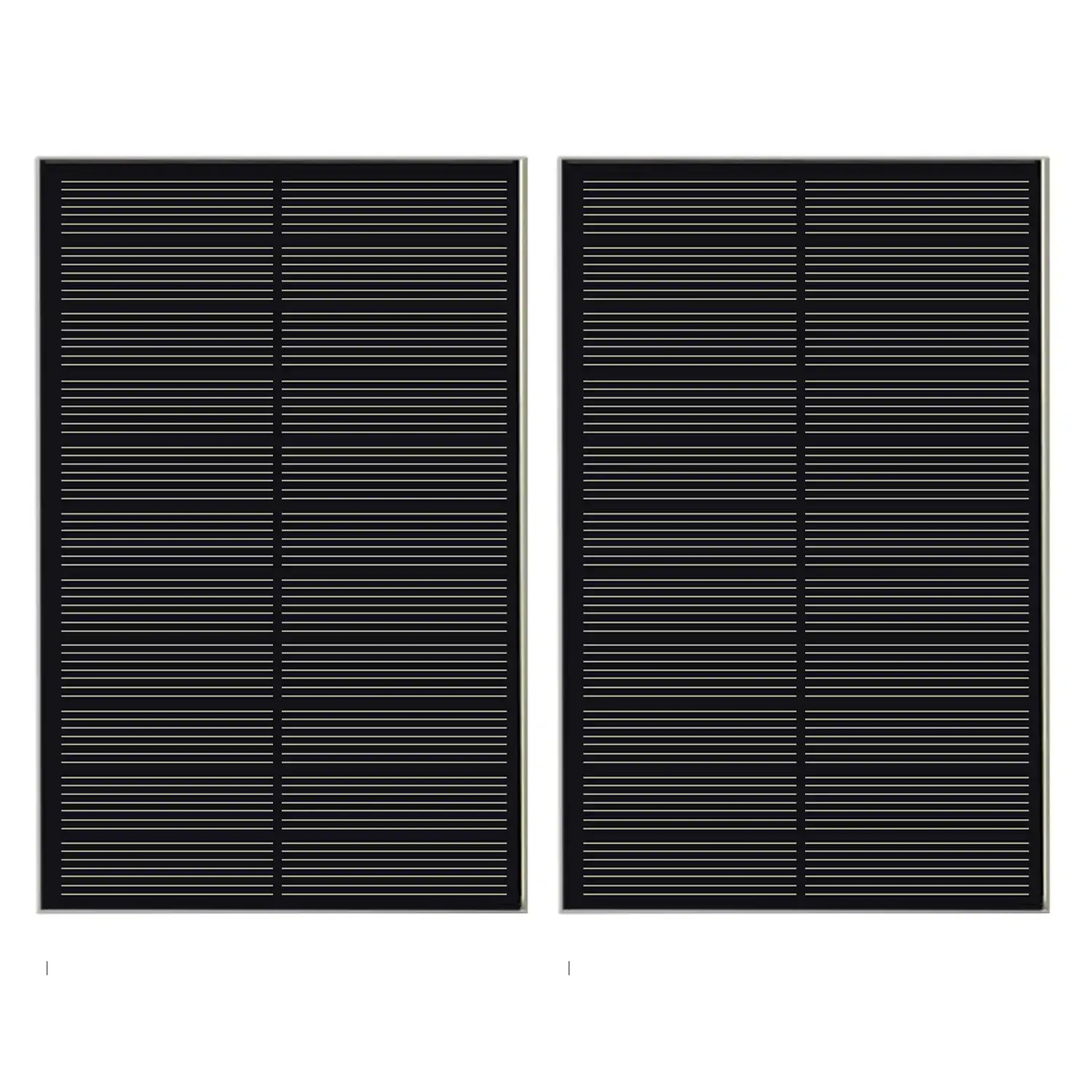

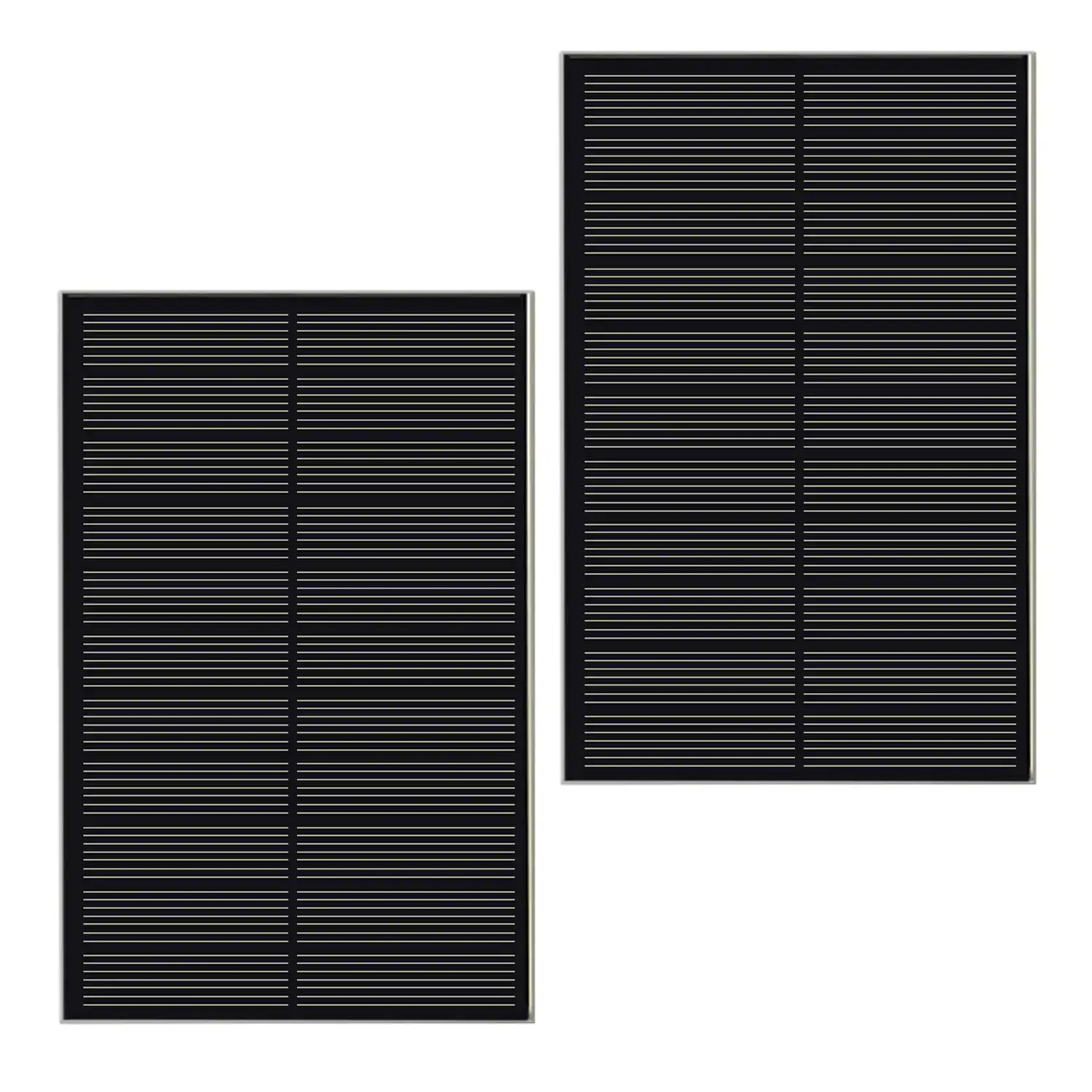

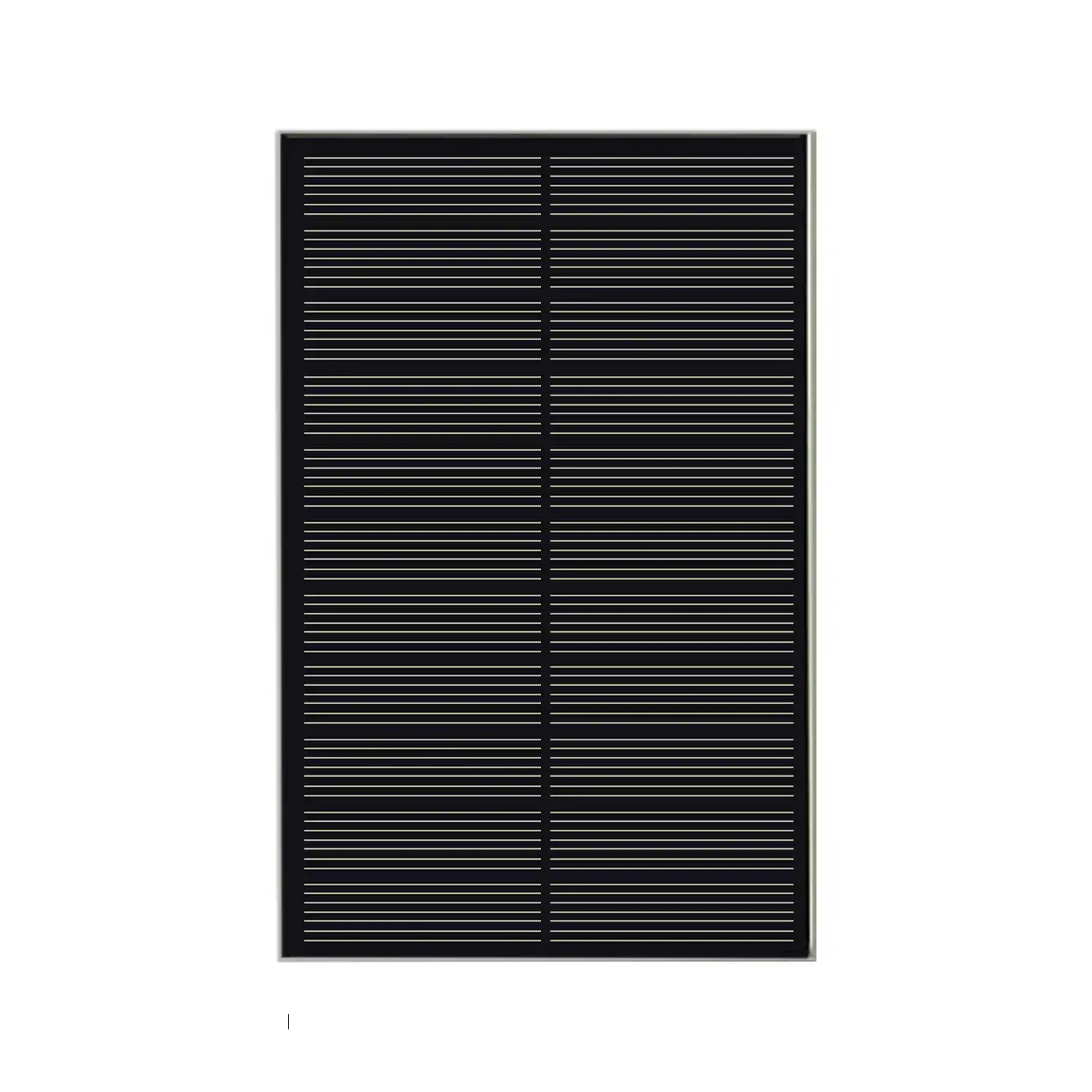

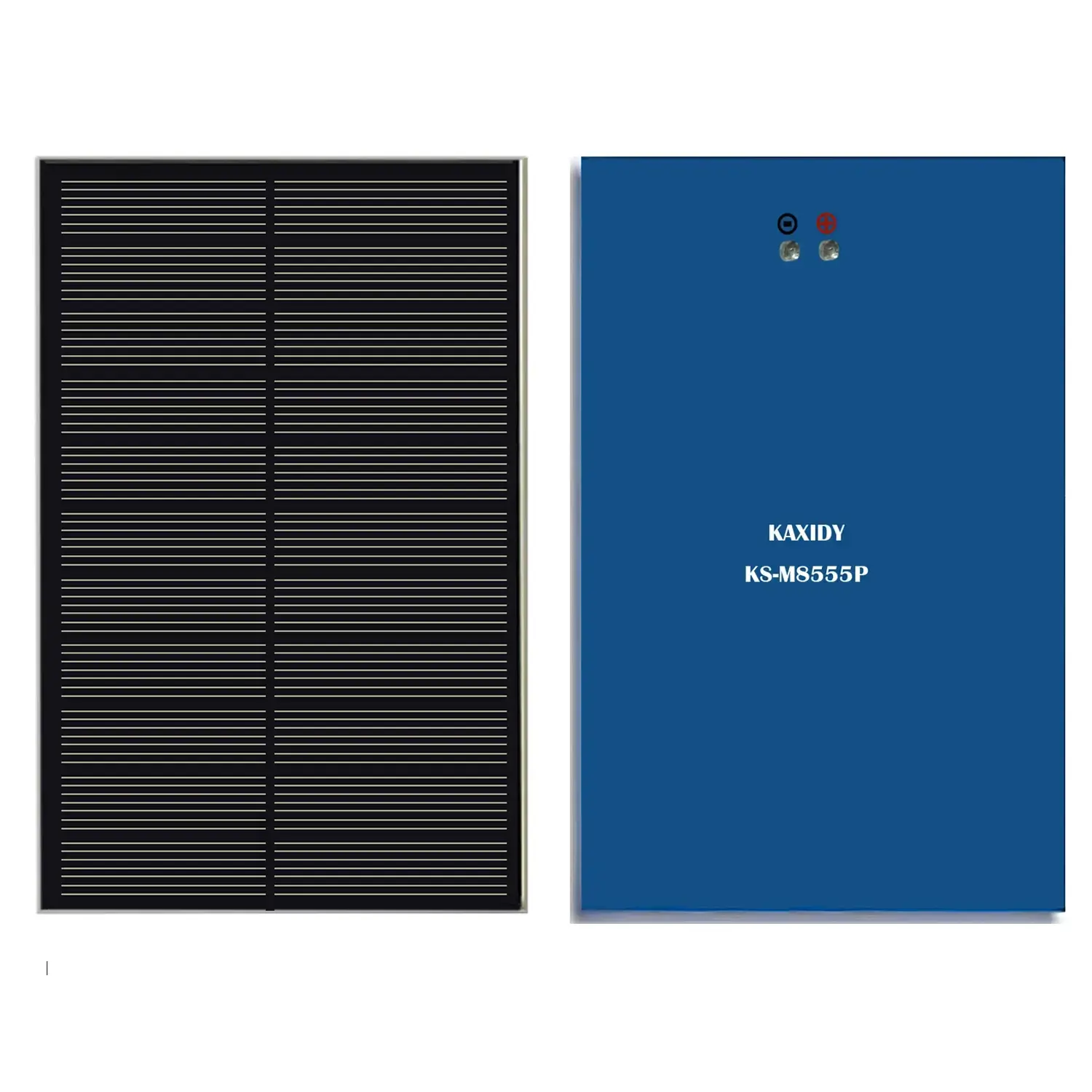

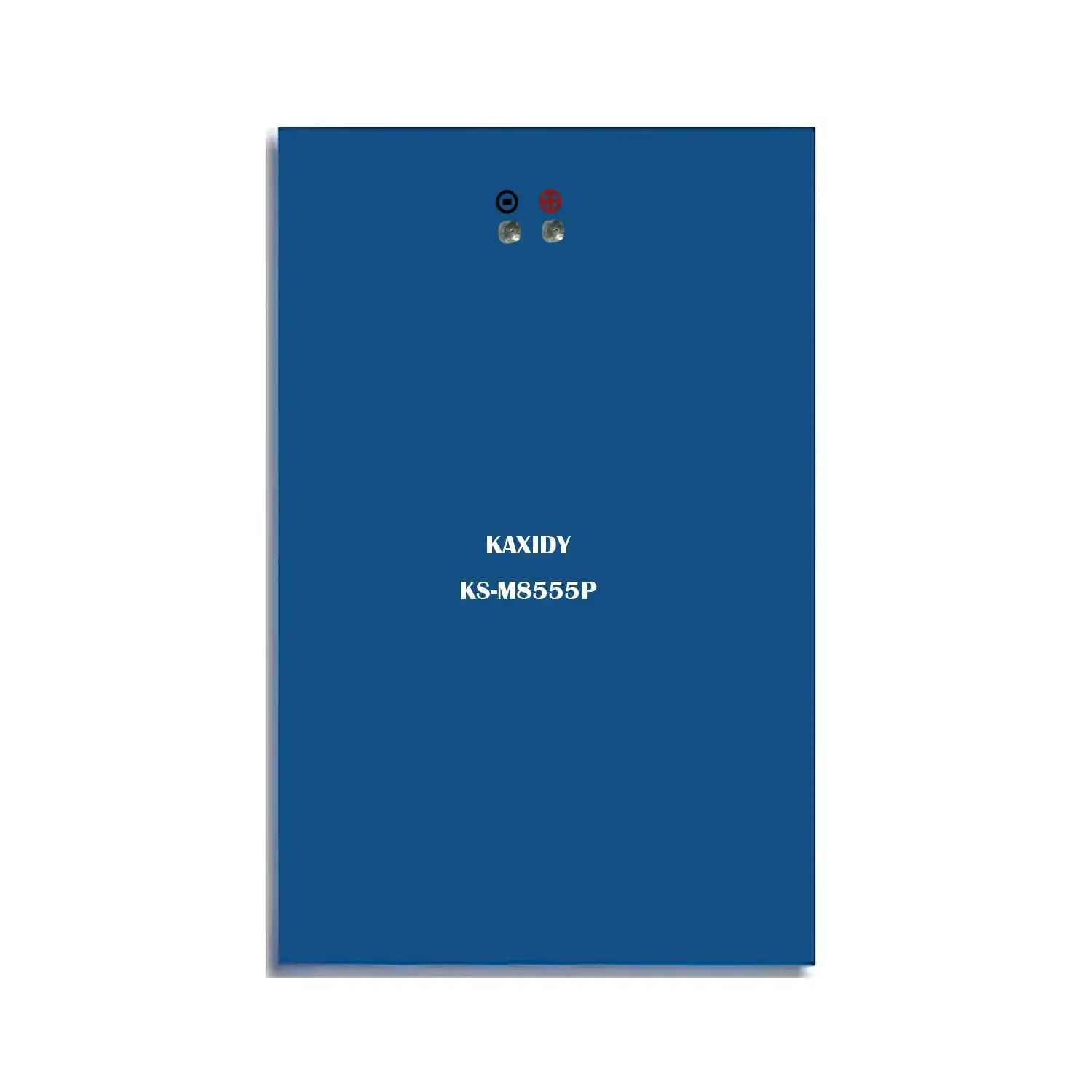

- Item No. KS-M8555
- Maximum Power (Pm) :0.63W
- Operating Voltage (Vmp):5.5V
- Operating Current (Imp) : 115mA
- Dimension: 85x55x3mm
- Power Tolerance:-5% to +5%
- Encapsulation Methods: Epoxy Resin Lamination
- No frame, with solder wire.
- STANDARD TEST CONDITIONS(STC):
AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
- Warranty: nominal power keep more than 90% in 3 years
- Datasheet for PDF VIEW
|
