Features:
-- High efficiency monocrystalline solar cells
-- IEC61215 certification
-- Custom manufacturing available upon request
Figure of Solar Panel Structure
|

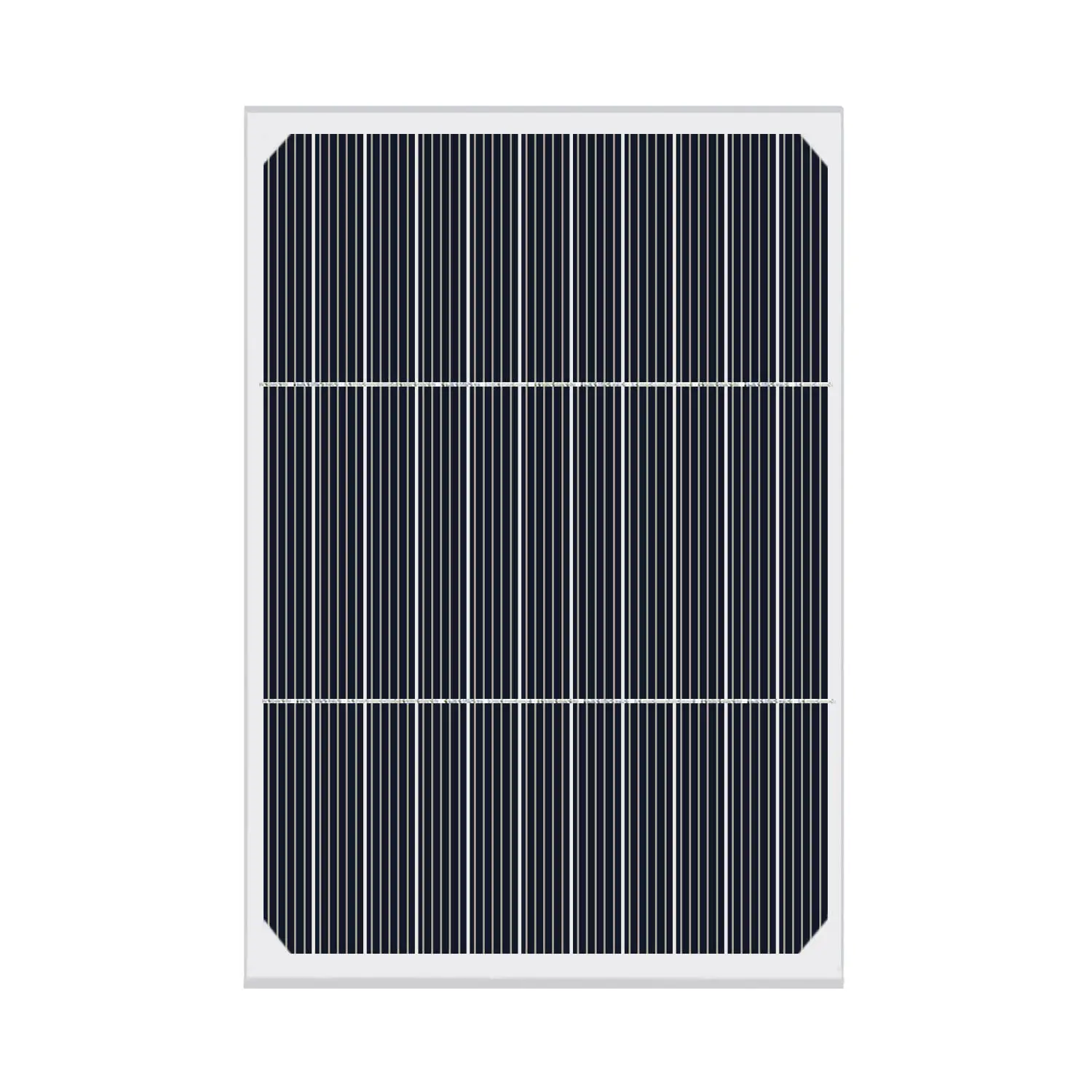

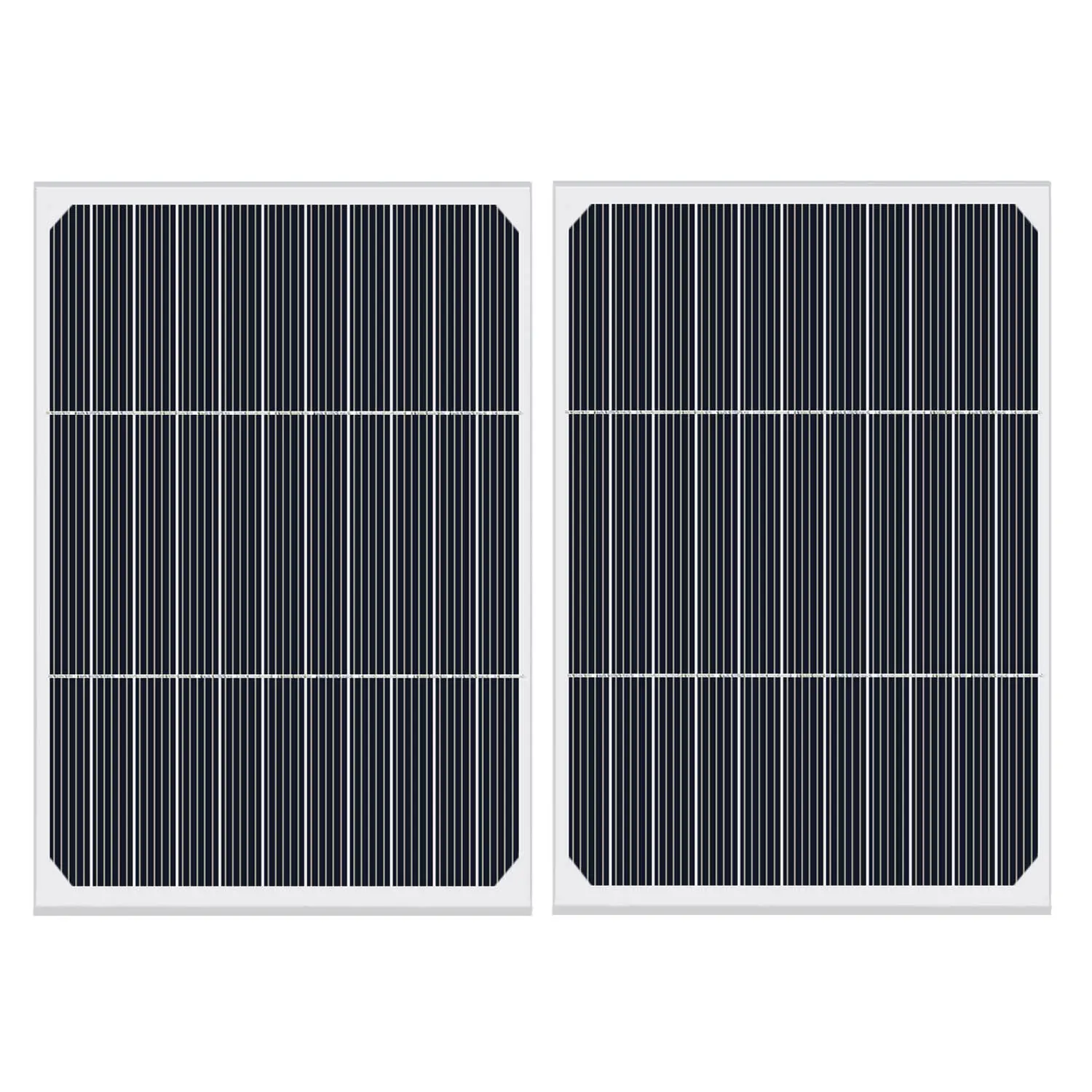

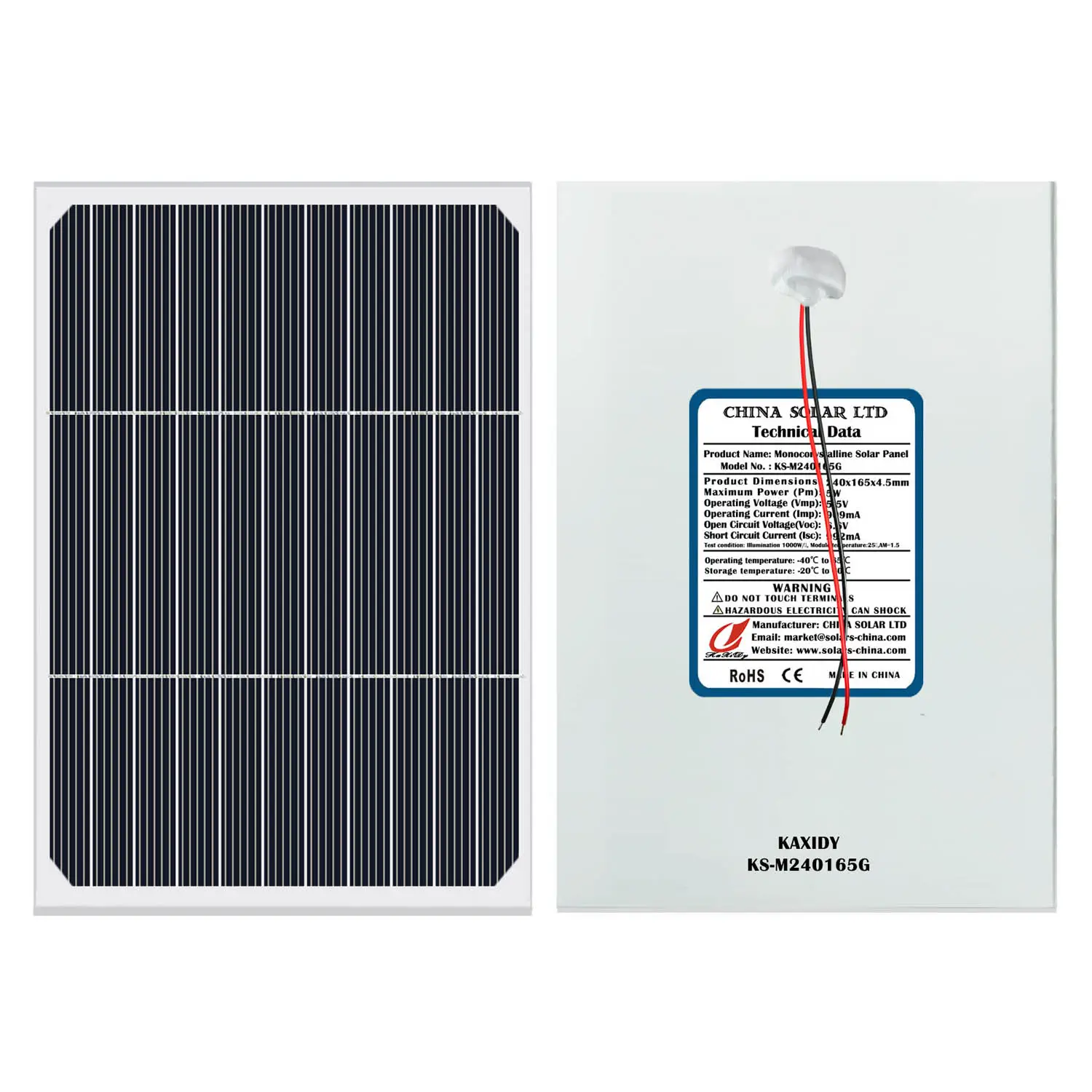

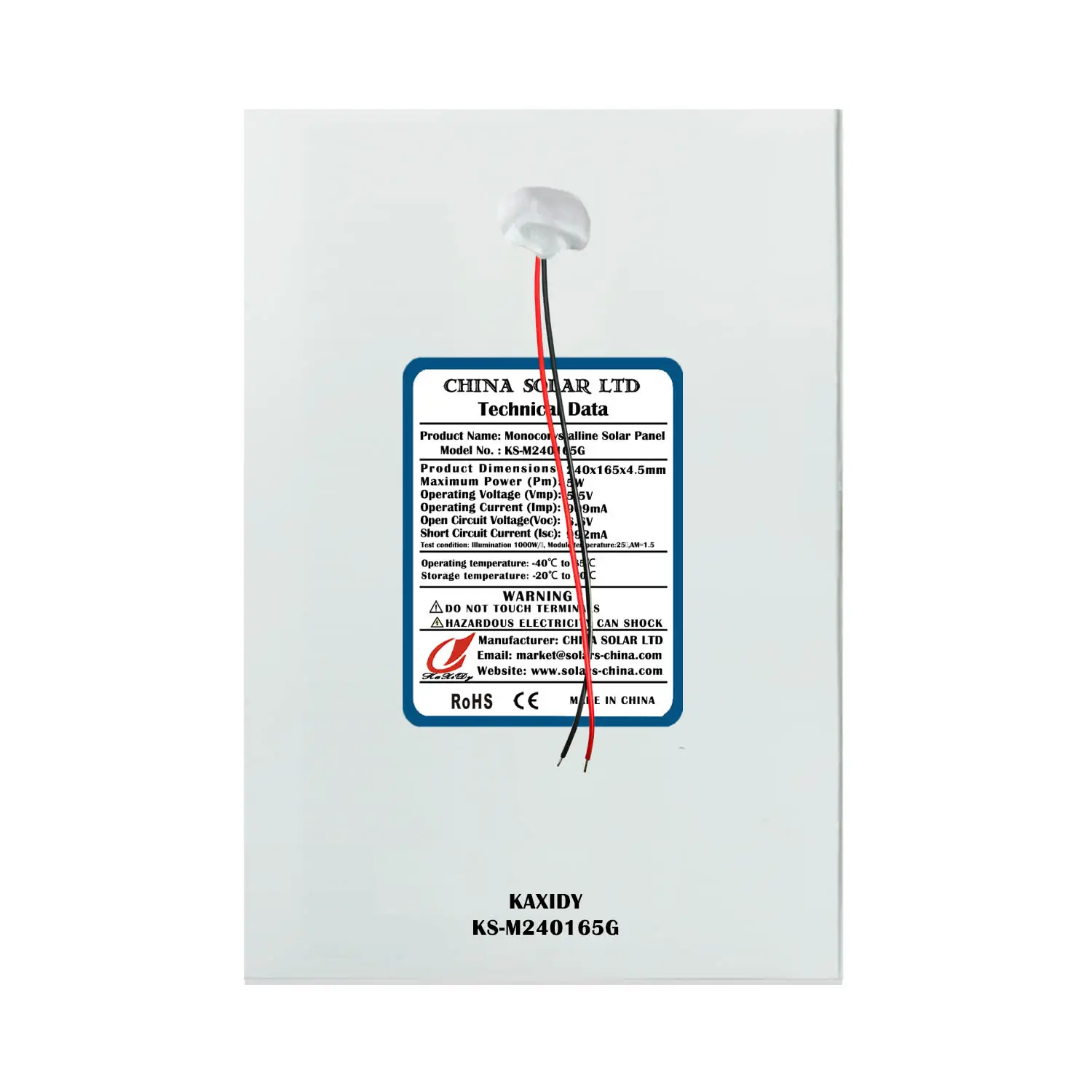

- Item No. KS-M240195G
- Maximum Power (Pm) :5W
- Operating Voltage (Vmp):18V
- Operating Current (Imp) 277mA
- Power Tolerance:-5% to +5%
- Solar Cell: Monocrystalline silicon solar cell
- Dimension:240x195x5mm
- Encapsulation Methods: Tempered glass; No frame
- Weight of solar panel: 460g/pcs
- STANDARD TEST CONDITIONS(STC):
AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
- Warranty: nominal power keep more than 90% in 10 years.
- Datasheet for PDF VIEW
|
