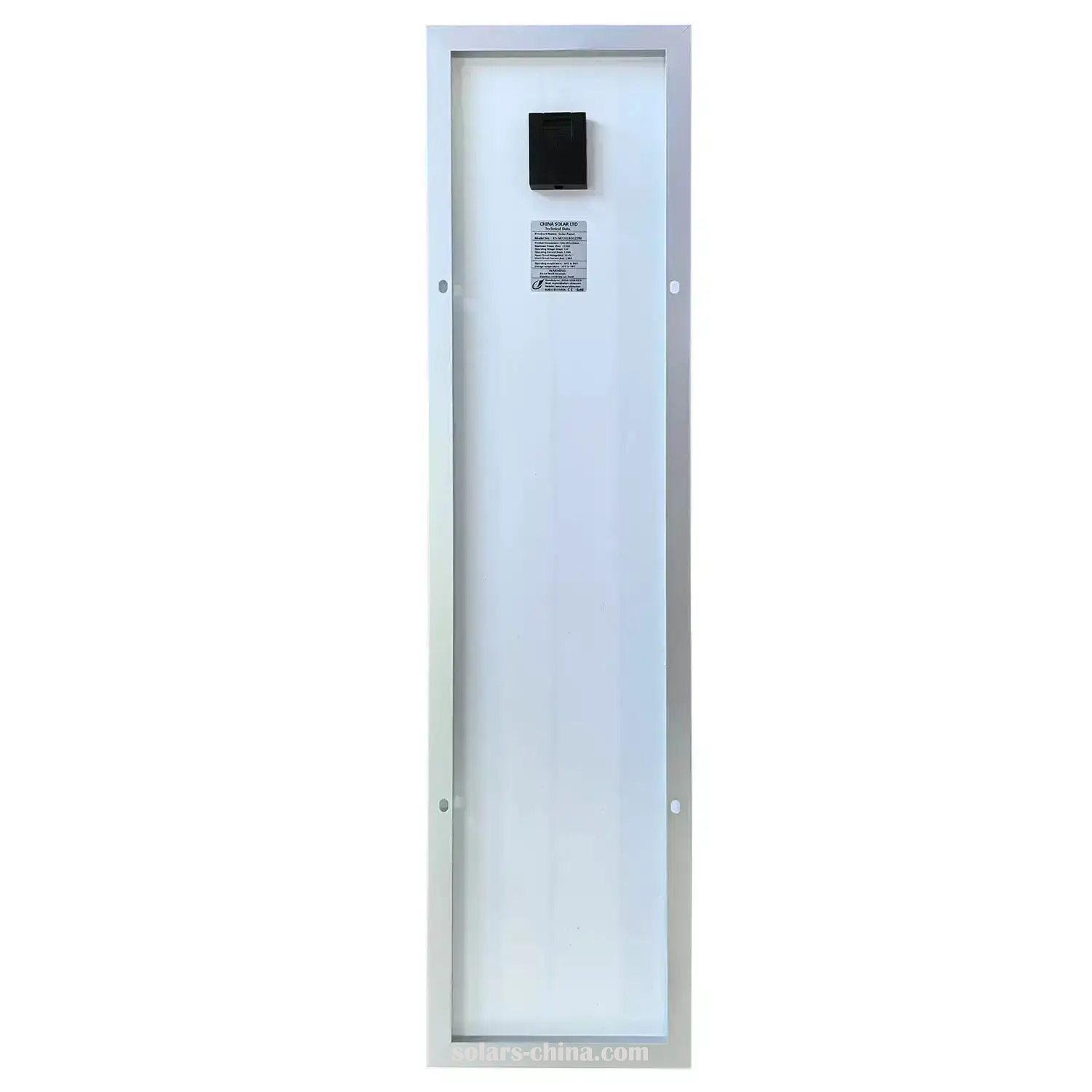

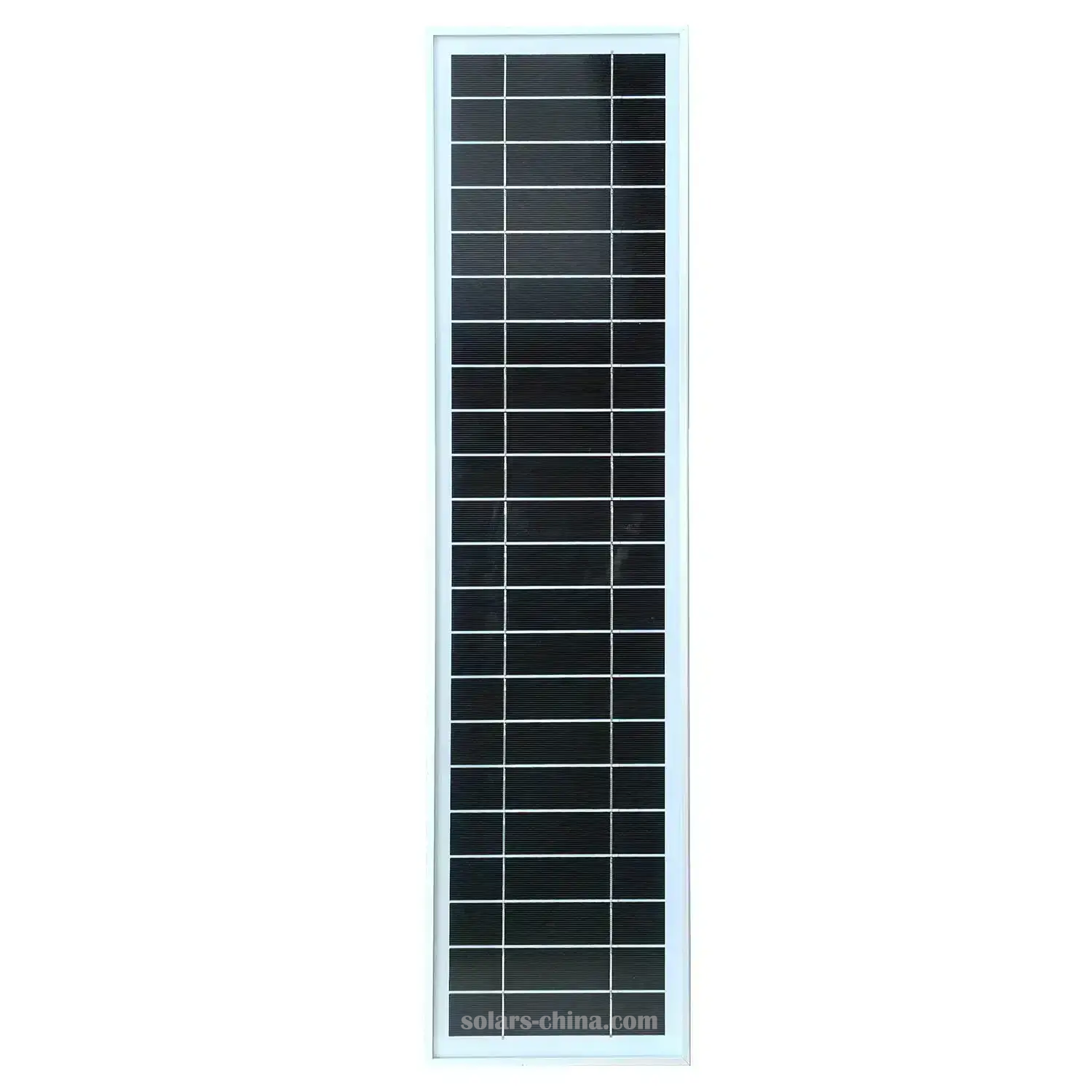

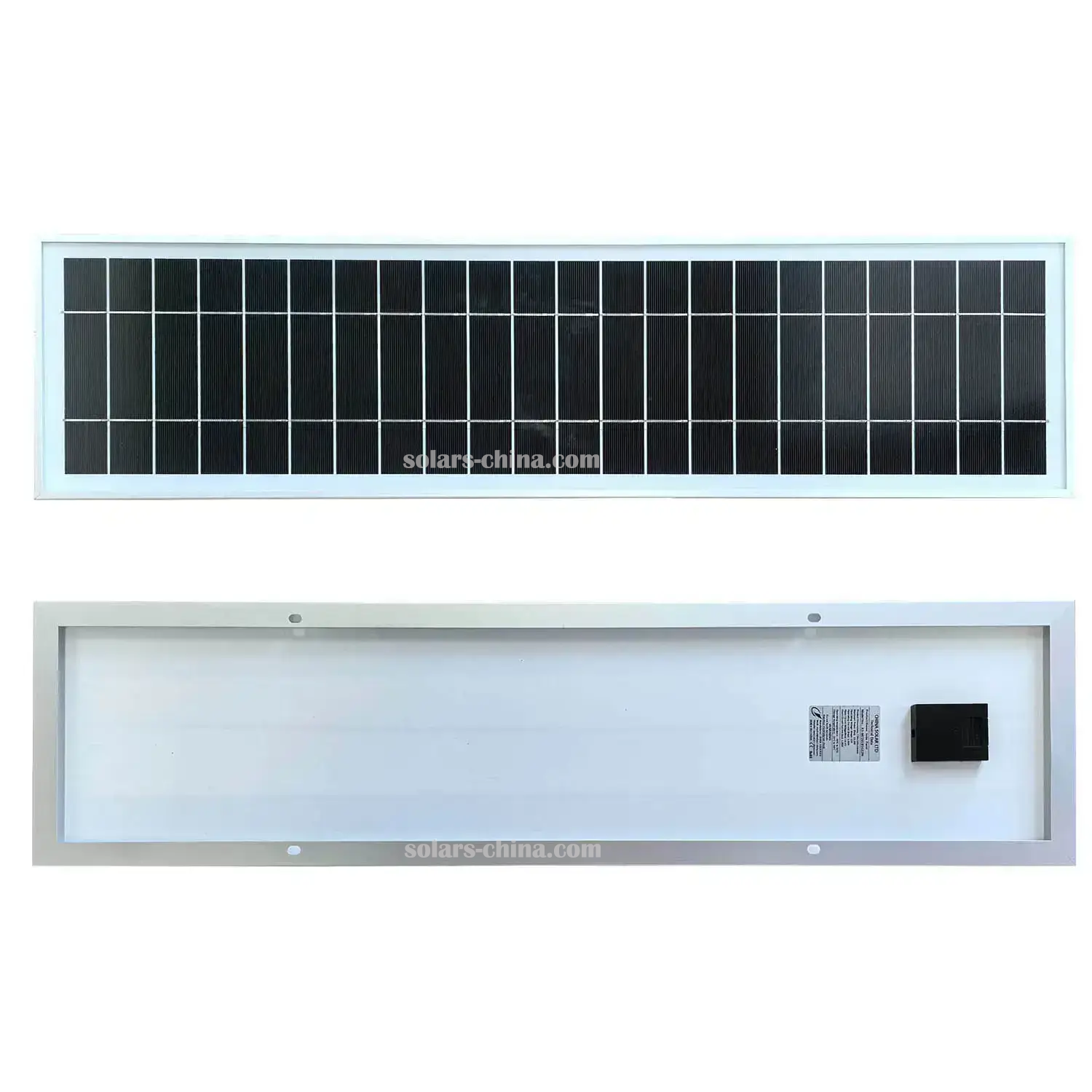

20W Monocrystalline silicon solar module |
|
| |
Features:
-- High efficiency monocrystalline solar cells
-- IEC61215 certification
-- Custom manufacturing available upon request
Figure of Solar Panel Structure
|
- Item No: KS-M20W
- Maximum Power (Pm) :20W
- Operating Voltage (Vmp):18V
- Operating Current (Imp) :1.11A
- Open Circuit Voltage (Voc) :21.6V
- Short Circuit Current (Isc) 1.3A
- Dimension:530x350x25mm
- Type:Monocrystalline silicon solar cell
- Frame: Silver anodized aluminum
- With juction box, without solder wire
- Solar Module for 12V charging
- STANDARD TEST CONDITIONS(STC):
AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
 Datasheet for PDF VIEW
|
|
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |

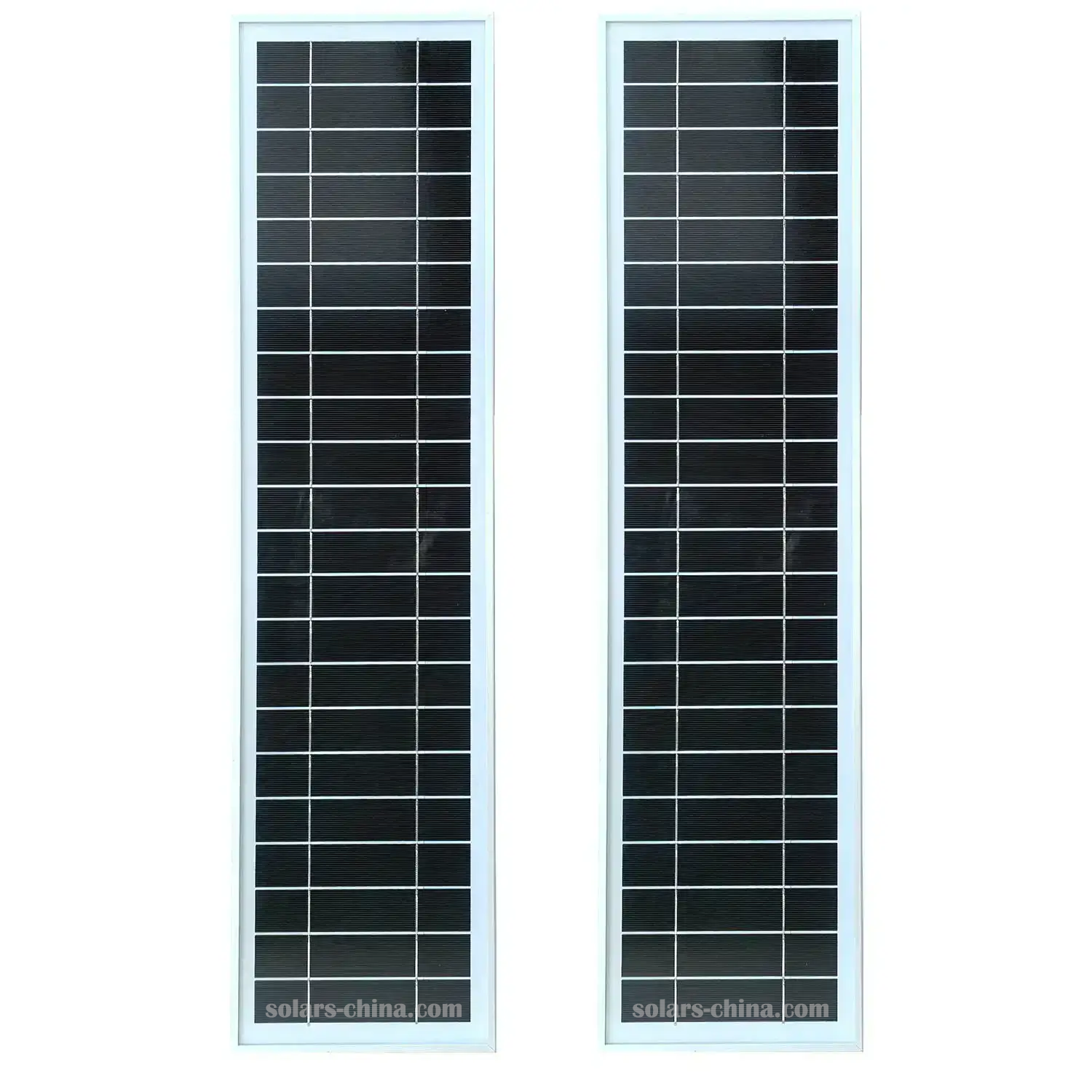

20W Polycrystalline silicon solar module |
|
| |
Features:
-- Polycrystalline solar cells
-- IEC61215 certification
-- Custom manufacturing available upon request
Figure of Solar Panel Structure
|
- Item No: KS-P20W
- Maximum Power (Pm) :20W
- Operating Voltage (Vmp):18V
- Operating Current (Imp) :1.11A
- Open Circuit Voltage (Voc) :21.6V
- Short Circuit Current (Isc) 1.3A
- Dimension:530x350x25mm
- Type:Polycrystalline silicon solar cell
- Frame: Silver anodized aluminum
- With juction box, without solder wire
- Solar Module for 12V charging
- STANDARD TEST CONDITIONS(STC):
AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
- Datasheet for PDF VIEW
|
|
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Configuration Relationships between solar panel and Batteries |
| Batteries |
Solar Panel |
Related Products |
1.2V |
1.8V~2V |
|
1.5V |
2.2V-2.5V |
|
2.4V |
3.6V~4V |
|
3.2V |
4.5V-5V |
|
3.7V |
5.5V-6V |
|
5V |
7V-8V |
|
6V |
9V |
|
9V |
12V-13.5V |
|
12V |
17.2~18V |
|
18V |
24V |
|
24V |
36V |
|
36V |
48V |
48V solar panel |
|
