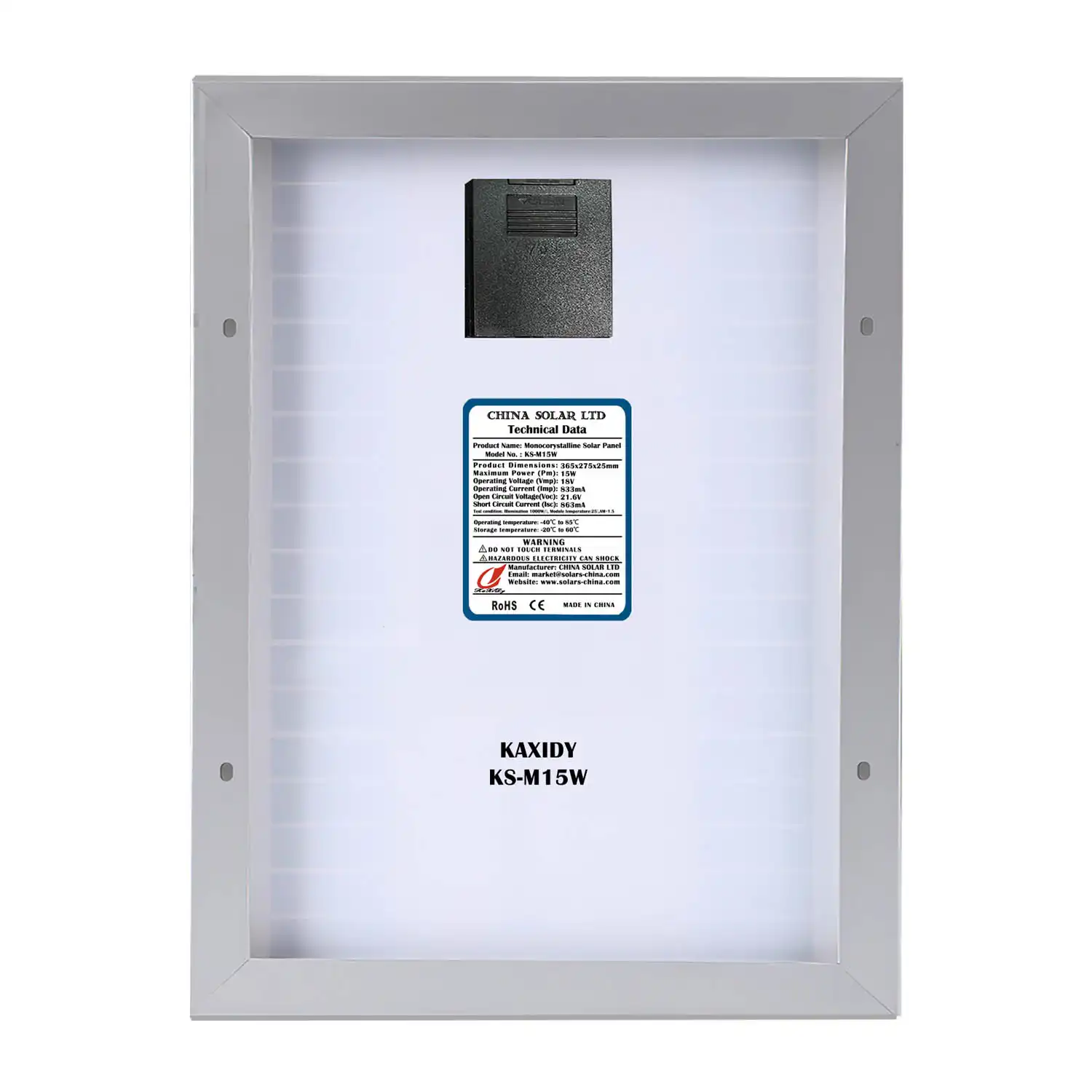

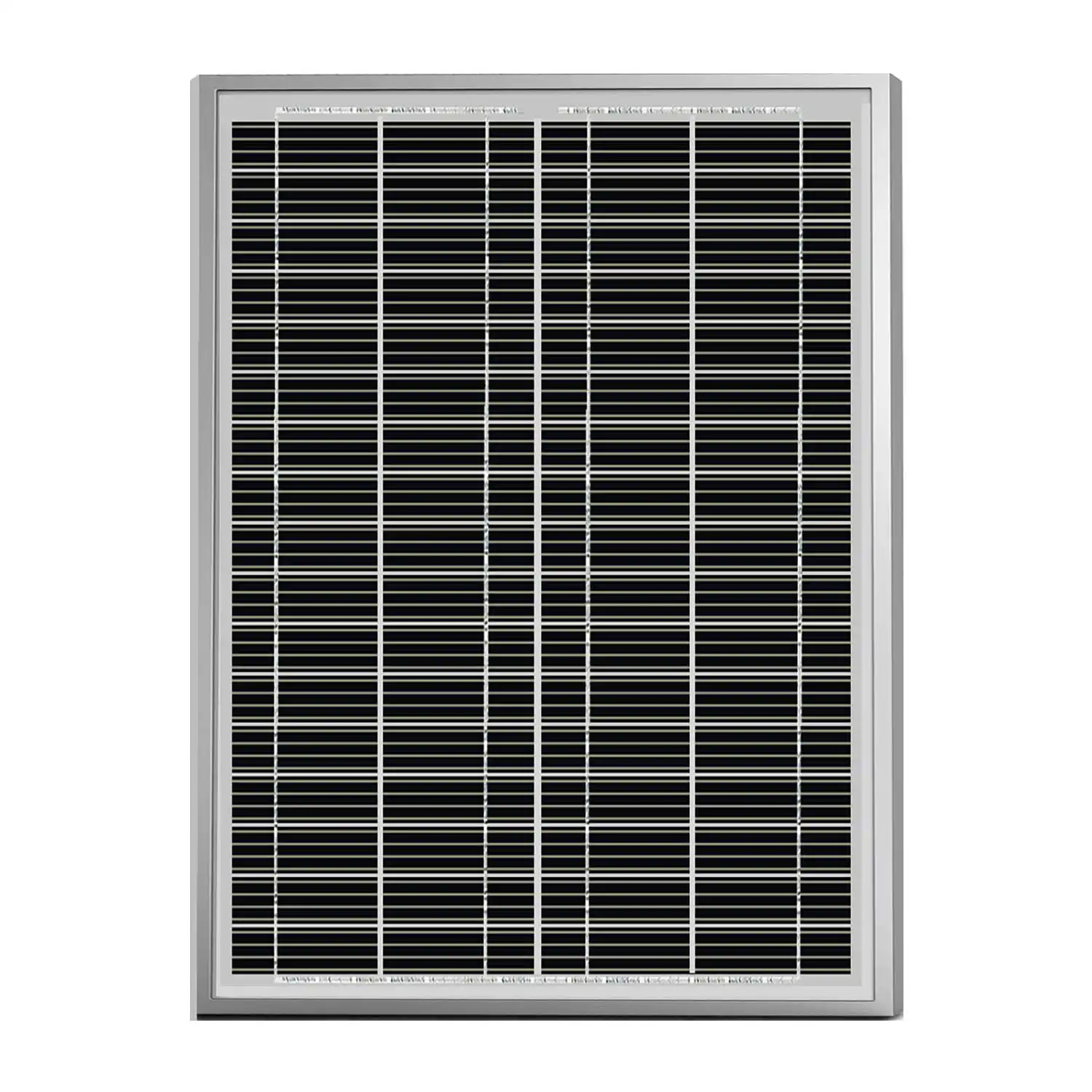

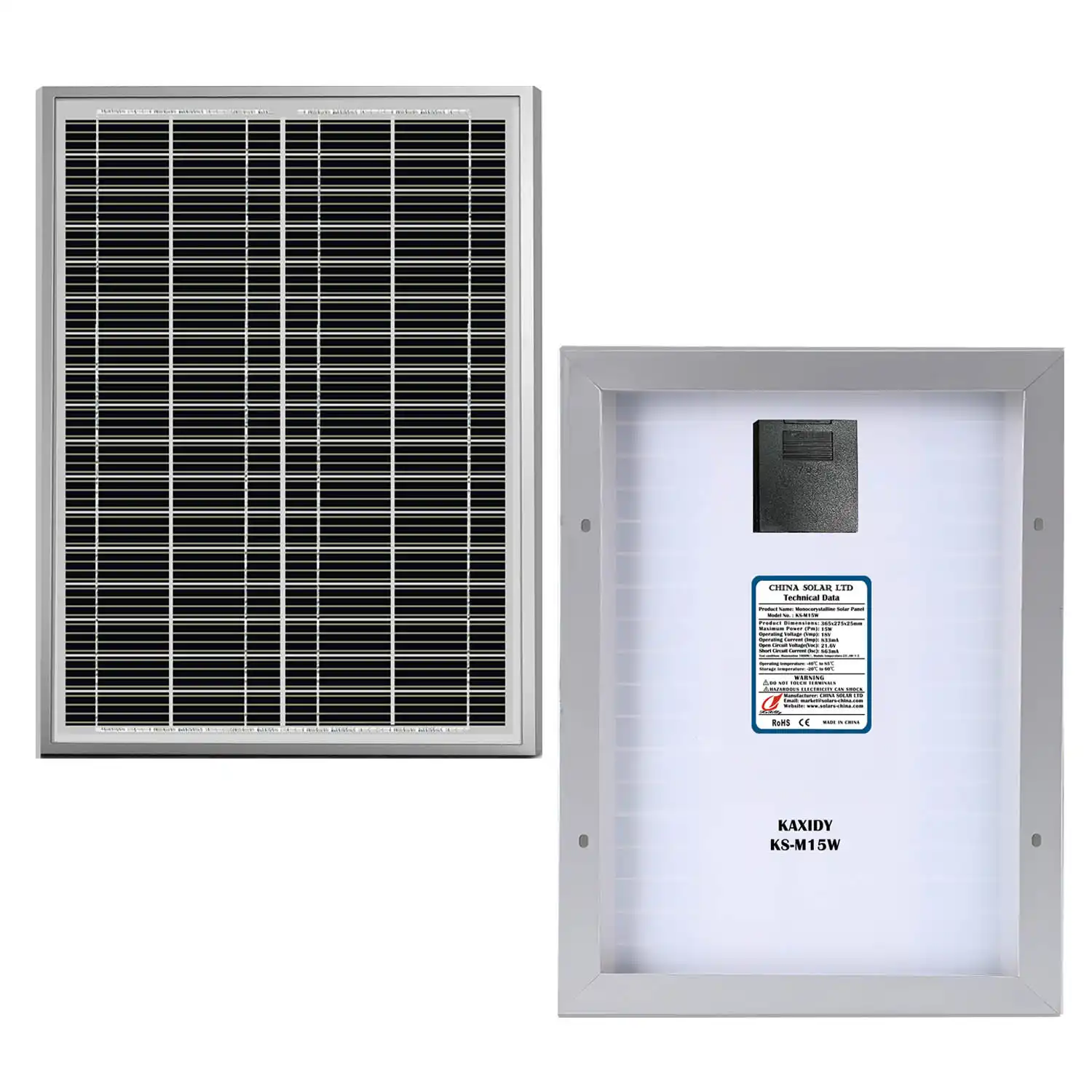

15 watt solar panel
|
- Item No:KS-M15W
- Maximum Power (Pm) :15W
- Operating Voltage (Vmp):18V
- Operating Current (Imp) :833mA
- Open Circuit Voltage (Voc) :21.6V
- Short Circuit Current (Isc) :996mA
- Dimension:380X350X25mm
- Solar Module for 12V charging
- Type:Monocrystalline silicon solar cell
- Frame: Silver anodized aluminum and junction box.
- Charger for 12V batteries
- Warranty: nominal power keep more than 90% in 10 years
 |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------- |

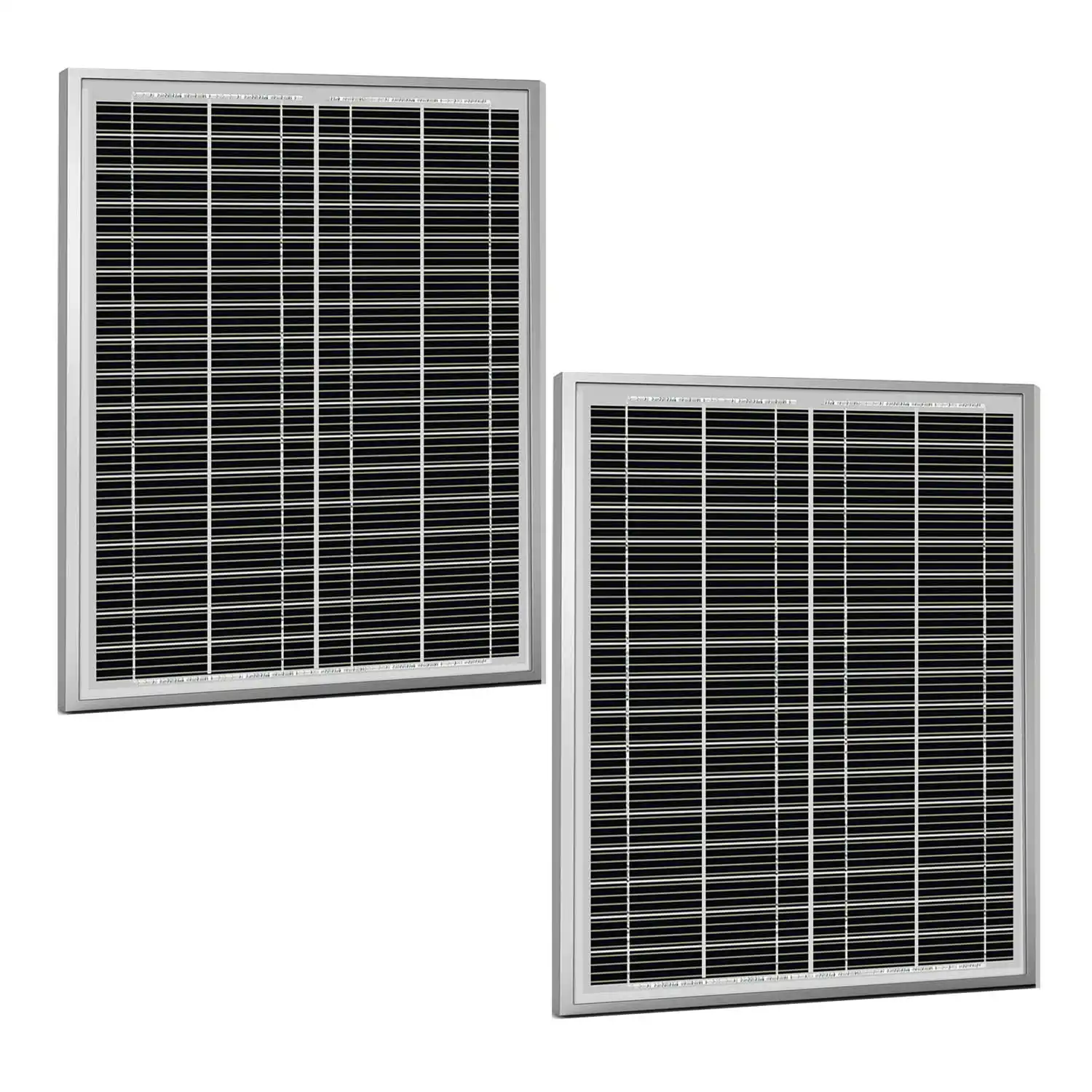

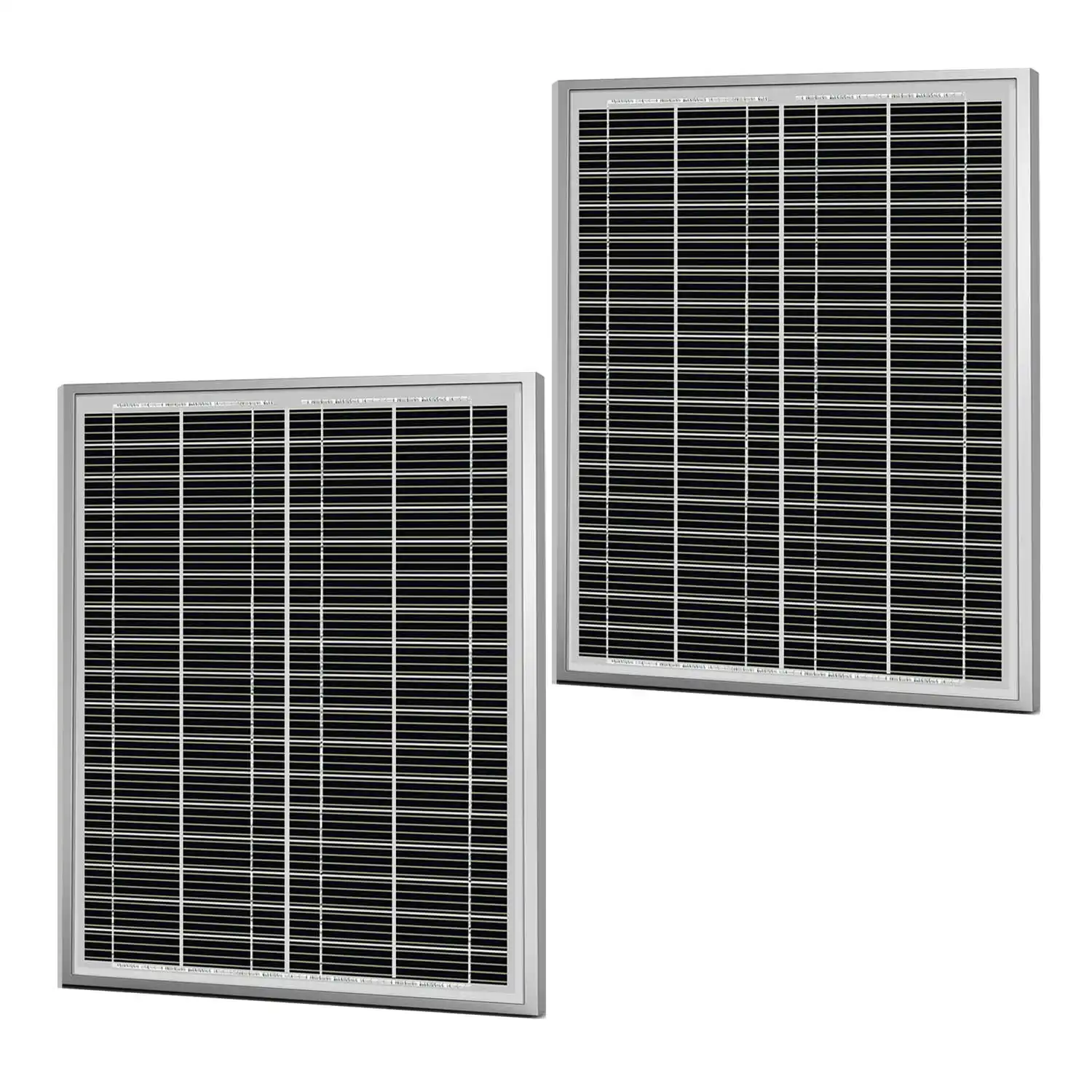

15W Solar Panel |
|
Item No:KS-P15W
Maximum Power (Pm) :15W
Operating Voltage (Vmp):18V
Operating Current (Imp) :833mA
Open Circuit Voltage (Voc) :21.6V
Short Circuit Current (Isc) :996mA
Dimension:380X350X25mm
Solar Module for 12V charging
Type:Polycrystalline silicon solar cell
Frame: Silver anodized aluminum and junction box.
Charger for 12V batteries
Warranty: nominal power keep more than 90% in 10 years
|
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
Configuration Relationships between solar panel and Batteries |
| Batteries |
Solar Panel |
Related Products |
1.2V |
1.8V~2V |
|
1.5V |
2.2V-2.5V |
|
2.4V |
3.6V~4V |
|
3.2V |
4.5V-5V |
|
3.7V |
5.5V-6V |
|
5V |
7V-8V |
|
6V |
9V |
|
9V |
12V-13.5V |
|
12V |
17.2~18V |
|
18V |
24V |
|
24V |
36V |
|
36V |
48V |
48V solar panel |
|
